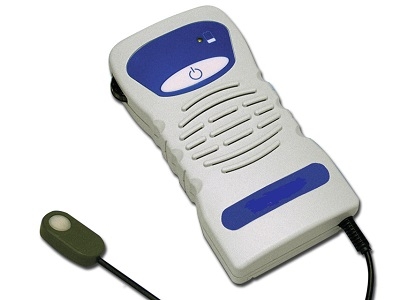

Veterinary doppler with fixed 8 MHz probe

Doppler for detecting blood flow in small peripheral vessels

Ideal for veterinary practitioners for routine blood pressure measurement on pets

Flow signals are easily located using the lightweight narrow beam transducer while internal signal

processing minimizes noise artefacts.

Technical Specifications

Ultrasound

Frequency: 8 MHz continuous wave

Transducer: 2 crystal narrow beam

Output power: <15 mW/cm2 SATA

Audio Response: 300 Hz - 4 kHz

Unit Controls

Keys: 1 key (for unit on/off)

Controls: rotary volume

Indicators: yellow battery low LED

Power supply

Battery 9V Alkaline (not included)

Expected battery life: >9 hours

Output

Headset: Audio output for optional

Headset (not included)

 Material: ABS / Noryl

Size: 150 x 75 mm

Weight: 299 g (with transducer)

 Classification: Class I Type B - IEC 60601-I

Supplied with 3 Years Warranty
